Roller Shutter Industrial Sectional Door 380V 40mm With Windows

Sussman Modular House (Wuxi)Co.,Ltd

Roller Shutter Industrial Sectional Door 380V 40mm With Windows

  • 1
  • 2

Brand Name : SUSSMAN

Model Number : ISD

Certification : ISO, CE

Place of Origin : China

MOQ : 1 Set

Price : Quote Depend on the Size

Payment Terms : L/C, T/T, Western Union, D/A, D/P

Supply Ability : 100 sets per month

Delivery Time : 25-30 days

Packaging Details : plastic film

Applicable door opening : Maximum width:9000 Maximum height:8000

Working voltage/frequency : 380V/50HZ

Door operation : Motor-driven

Door Panel : 40mm

Sound insulation : 24db

Opening speed : 0.2m/s-0.5m/s

Contact Now

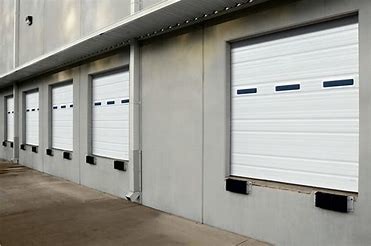

Industrial Sectional Roller Shutter Door With Windows Doors Industrial


Industrial sectional door, as the best choice of the outdoor of the modern architecture, enjoys the perfect durability and sealing, the elegant aprrearance, the simple operating system and the spring balanced system, which is used durably and cleaned easily with the special designing door panel.


1. Product nameIndustry Sectional Door
2. MaterialGalvanized steel with PU foaming inside
3. Material ConstructionSteel-foam-steel, sandwich panel
4. Thickness of the steel plate0.4mm both available
5. Thickness of the panel40mm or 50mm
6. Section StyleNon-finger protection
Finger protection
7. Section Size Range400mm-500mm in height,
Max 12000mm in width
8. Section Surface FinishWood grain, orange peel, flush
9. Front-side designWood grain, with Rectangle/stripes design
10. Backside designWood grain, with Stripe design
11. AccessoriesSingle Track with min headroom for 350mm;
Double Track with min headroom for 150mm
12. Door OpenersAC220V or 110V; DC Motor; 800-1500N
13. Opening WayElectrical control and Manual operation



It can be used on the door outside each building. It has a beautiful appearance, high strength, safety, reliability, stability, low noise, good sealing and insulation properties, making it widely used in warehouse ,workshops and all kind of factory.
